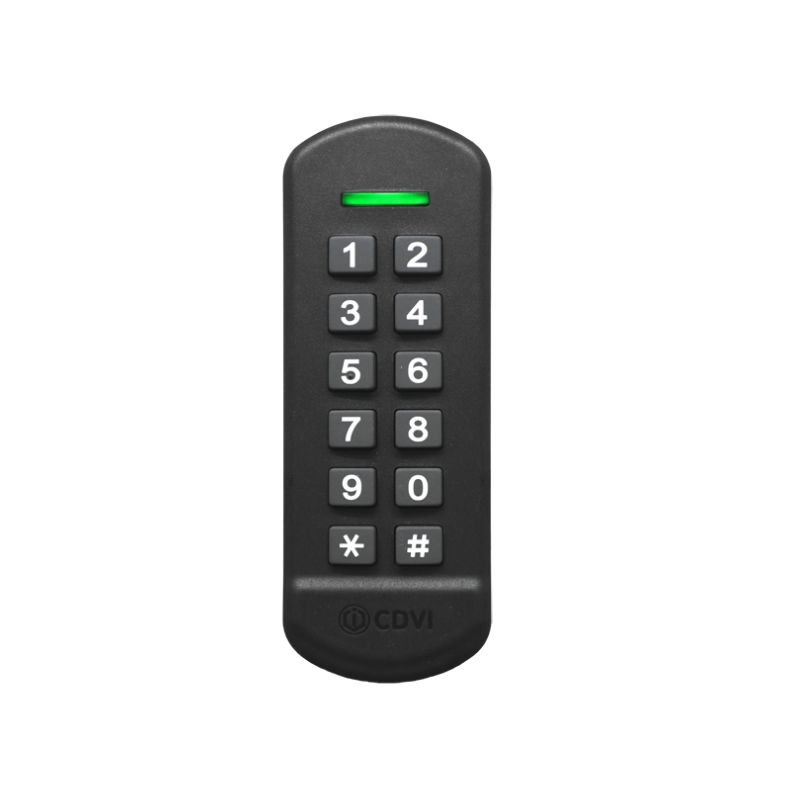

PROMI

Multi-technology standalone reader & keypad with Wiegand output (125kHz, 13.56MHz)
F0101000101
The PROMI is a versatile access control solution that combines security, ease of use, and flexibility in one single device. Whether you need a standalone system or want to integrate it into an online access control unit, the PROMI keypad allows for both. Using multi-format frequencies, it is compatible with all CDVI credentials operating at 125 kHz or 13.56 MHz. The user is able to authenticate using PIN only, card only, card + PIN, or multi-user access. Suited for outdoor installations, the PROMI is versatile and fits many environments.
IP RatingIP66
Number of Relays1
MountingSurface
Min Temperature (°C)-40�C
Max Temperature (°C)+60�C
Voltage AC/DCDC
Min. Voltage (V)12V DC
Max Voltage (V)24V DC
Max Power Consumption (mA)60 mA (standby), 150 mA (in operation)
Surface MaterialPolycarbonate, rubber keys
Product Height (mm)136 mm
Product Width (mm)50 mm
Product Depth (mm)23.5 mm
Product Weight (kg)245 g
×
