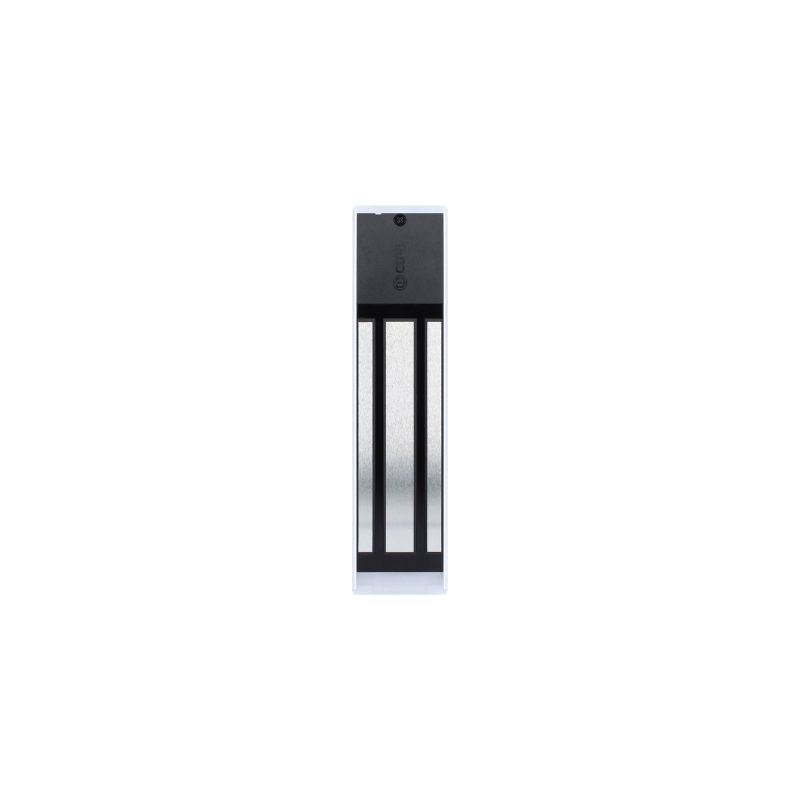

V5SRB
Surface 500kg magnetic lock, monitored with buzzer
F0526000018
Providing high quality electro-magnetic locking, the V5SR-B uses patented technology to keep people and assets secure. With 500kg of holding force, live status monitoring, and both LED and buzzer indication, this lock is ideal for high security installations. Every V5SR-B is supplied with security catch-ropes, to prevent the magnet from falling out of position and reducing the risk of injury during installation.
IP RatingIP42
Top 5 featuresSurface mount electro-magnetic lock Up to 500kg holding force for robust security 12 or 24Vdc operation Live status monitoring Patented locking technology Visual (LED) and audible (buzzer) indication Z&L bracket available - see 500-ZL
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)500
MountingSurface
Min Temperature (°C)-20
Max Temperature (°C)60
Memoryhttps://pim.cdvigroup.com/_default_upload_bucket/V5SR_blue_2 [800x800].png
Voltage AC/DCDC
Min. Voltage (V)12 Vdc
Max Voltage (V)24 Vdc
Max Power Consumption (mA)550mA
Surface MaterialAluminium and steel
Product Height (mm)266 mm
Product Width (mm)66 mm
Product Depth (mm)40 mm
Armature Plate Dimensions (LxWxH)185 x 60 x 12 mm
Product Weight (kg)2,820 kg
