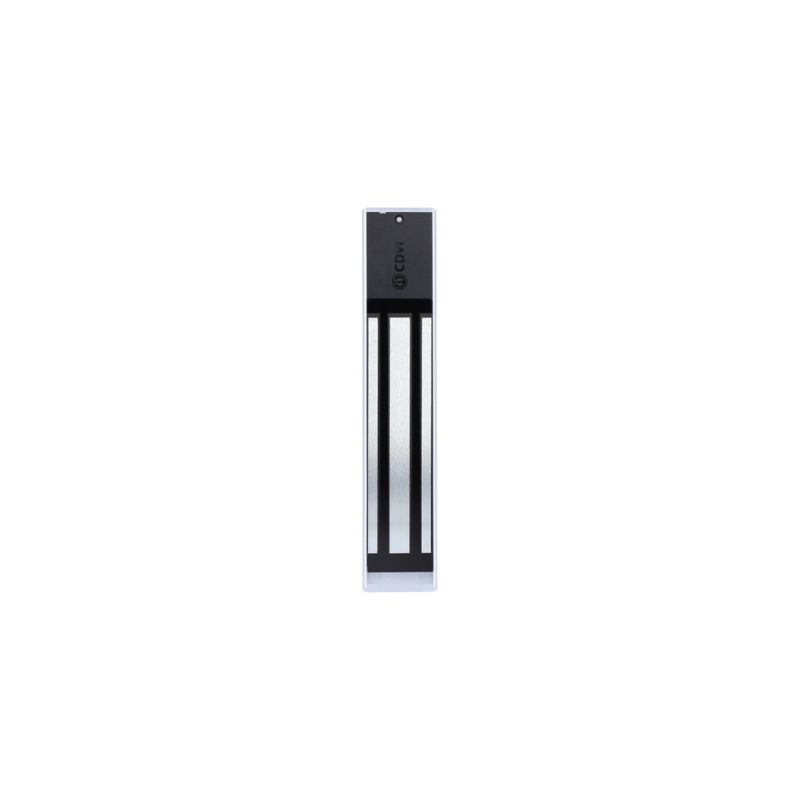

V4SR
Surface 400kg magnetic lock, monitored
F0525000015
Providing high quality electro-magnetic locking, the V4SR uses patented technology to keep people and assets secure. With 400kg of holding force, live status monitoring, and LED indication, this lock is ideal for high security installations. Every V4SR is supplied with security catch-ropes, to prevent the magnet from falling out of position and reducing the risk of injury during installation.
IP RatingIP42
Top 5 featuresSurface mount electro-magnetic lock Up to 400kg holding force for robust security 12 or 24Vdc operation Live status monitoring Patented locking technology Visual LED indication Z&L bracket available - see 300-ZL
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)400kg
MountingSurface
Min Temperature (°C)-20�C
Max Temperature (°C)+60�C
Memoryhttps://pim.cdvigroup.com/_default_upload_bucket/V4SR_green_2 [800x800].png
Voltage AC/DCDC
Min. Voltage (V)12 Vdc
Max Voltage (V)24 Vdc
Max Power Consumption (mA)500mA
Fire RatingEN1634-2 (30 minutes)
Surface MaterialAluminium and steel
Product Height (mm)254 mm
Product Width (mm)50 mm
Product Depth (mm)30 mm
Armature Plate Dimensions (LxWxH)185 x 45 x 12 mm
Product Weight (kg)1,450 kg
