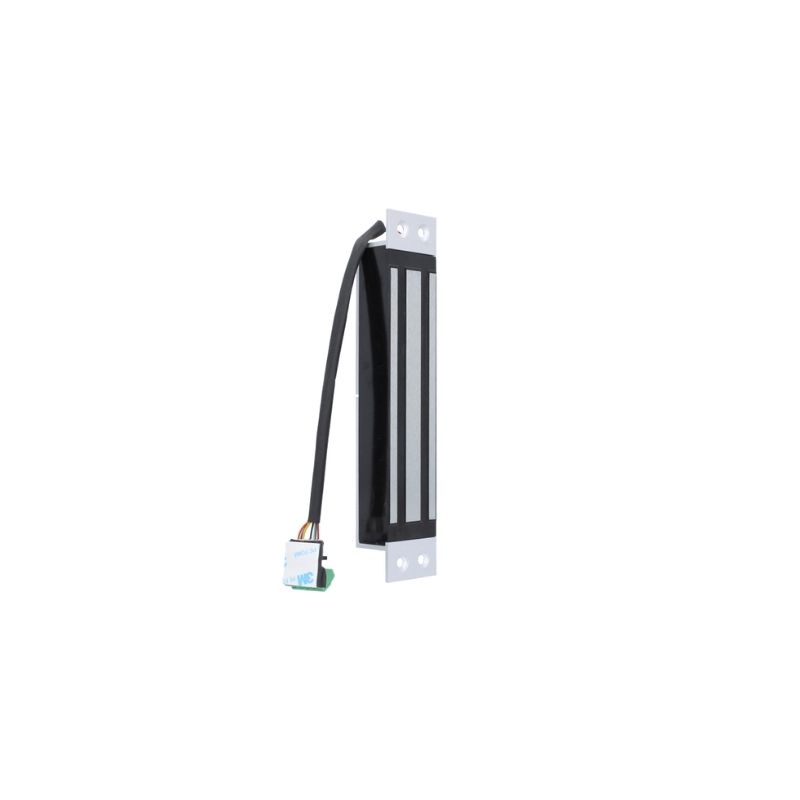

V4ER
Mortice 400kg magnetic lock, monitored
F0525000014
The V4ER is usually installed within a transom to provide electro-magnetic locking for swing doors. With 400kg holding force and lock status monitoring, this magnet is robust and user-friendly. To make installation easier in a wider range of environments, you can choose either 12Vdc or 24Vdc for the V4ER.
IP RatingIP65
Top 5 featuresMortice mount electro-magnetic lock Up to 400kg holding force for robust security 12 or 24Vdc operation Live status monitoring No moving parts Great for swing or sliding doors - usually mounted into the transom
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)400kg
MountingMortice
Min Temperature (°C)-40�C
Max Temperature (°C)+60�C
Memoryhttps://pim.cdvigroup.com/_default_upload_bucket/V4ER_1 [800x800].png
Voltage AC/DCDC
Min. Voltage (V)12 Vdc
Max Voltage (V)24 Vdc
Max Power Consumption (mA)500mA
Surface MaterialAluminium frame
Product Height (mm)228 mm
Product Width (mm)44 mm
Product Depth (mm)30 mm
Armature Plate Dimensions (LxWxH)185 x 45 x 11 mm
Product Weight (kg)1,290 kg
