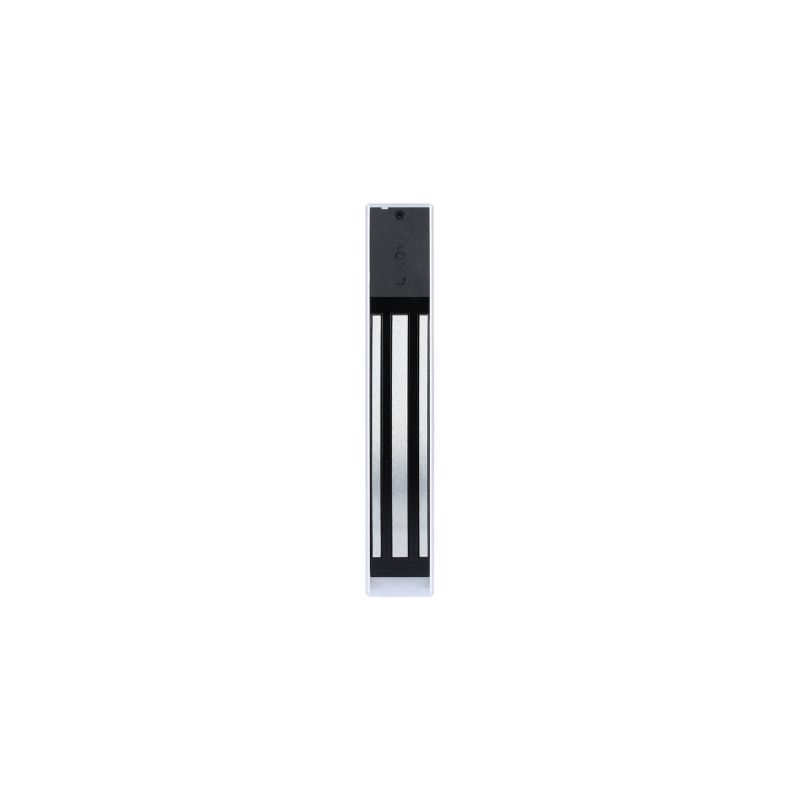

V3SR

Surface 300kg magnetic lock, monitored, fire rated
F0526000002
Providing high quality electro-magnetic locking, the V3SR uses patented technology to keep people and assets secure. With 300kg of holding force, live status monitoring, and LED indication, this lock is ideal for high security installations. Every V3SR is supplied with security catch-ropes, to prevent the magnet from falling out of position and reducing the risk of injury during installation. The V3SR is now a more sustainable magnet. This model consumes just 290mA with a 12Vdc power supply - a 42% reduction in energy usage compared to the previous model.
IP RatingIP42
Top 5 featuresSurface mount electro-magnetic lock Up to 300kg holding force for robust security Low consumption with only 290mA @ 12Vdc power supply Live status monitoring  Patented locking technology  Visual LED indication Z&L bracket available - see 300-ZL
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)300kg
MountingSurface
Min Temperature (°C)-20�C
Max Temperature (°C)+60�C
Cycle testingTested for 5,000,000 operations
Memoryhttps://pim.cdvigroup.com/_default_upload_bucket/V3SR_blue_2 [800x800].png
Voltage AC/DCDC
Min. Voltage (V)12 Vdc
Max Voltage (V)24 Vdc
Max Power Consumption (mA)290mA
Fire RatingEN1634-1 (30 minutes) and EN1634-2 (30 minutes)
Surface MaterialAluminium and steel
Product Height (mm)254 mm
Product Width (mm)45 mm
Product Depth (mm)28 mm
Armature Plate Dimensions (LxWxH)185 x 38 x 11mm
Product Weight (kg)1,088 kg
×
