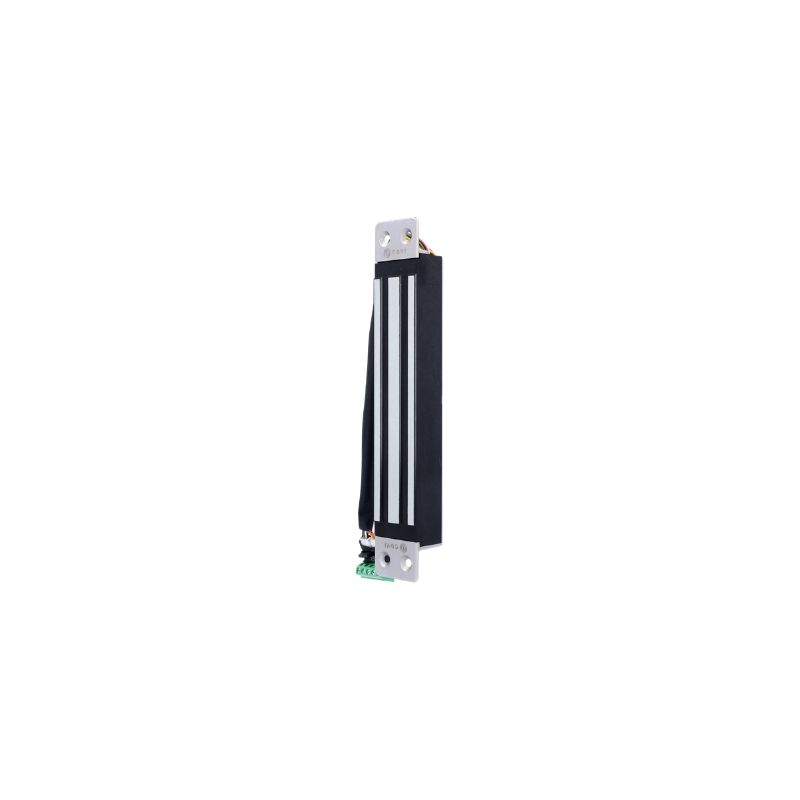

V3ER
Mortice 300kg magnetic lock, monitored
F0525000002
The V3ER is usually installed within a transom to provide electro-magnetic locking for swing doors. With 300kg holding force and lock status monitoring, this magnet is robust and user-friendly. To make installation easier in a wider range of environments, you can choose either 12Vdc or 24Vdc for the V3ER.
IP RatingIP54
Top 5 featuresMortice mount electro-magnetic lock Up to 300kg holding force for robust security 12 or 24Vdc operation Live status monitoring No moving parts Great for swing or sliding doors - usually mounted into the transom
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)300kg
MountingMortice
Min Temperature (°C)-40�C
Max Temperature (°C)+70�C
Memoryhttps://pim.cdvigroup.com/_default_upload_bucket/V3ER_1 [800x800].png
Voltage AC/DCDC
Min. Voltage (V)12 Vdc
Max Voltage (V)24 Vdc
Max Power Consumption (mA)285mA @ 12Vdc / 145mA @ 24Vdc
Surface MaterialZamak� and steel
Product Height (mm)228 mm
Product Width (mm)38.5 mm
Product Depth (mm)27 mm
Armature Plate Dimensions (LxWxH)185 x 38 x 11 mm
Product Weight (kg)1,100 kg
