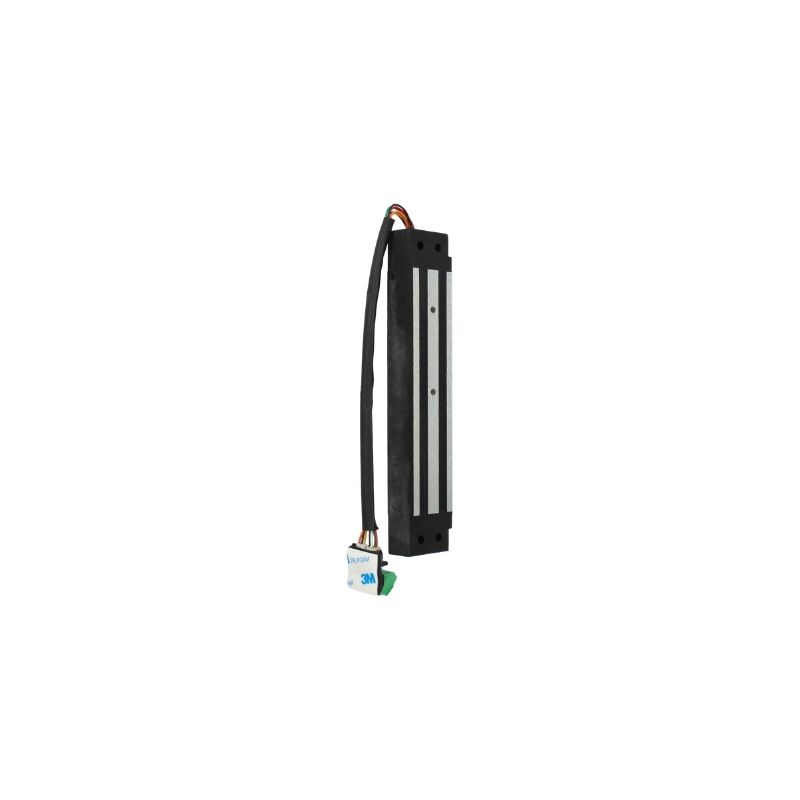

V3E36R
300kg embedded maglock
F0525000007
The V3ER36R is a popular 36 mm flush-mounted maglock for indoor use, with a holding force of 300 kg and a return contact. Its multi-fixed properties and narrow profile make it suitable for a wide range of applications, including installation on sliding doors or cross-mounting on swing doors. The maglock can be powered by 12 or 24 VDC as required and is fitted with a door position contact.
- High reliability
- Proven resistance
- Low cost
- 10-year guarantee
IP RatingIP42
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)300
MountingFlush
Memoryhttps://pim.cdvigroup.com/_default_upload_bucket/V3ER35_1.png
Voltage AC/DCDC
Min. Voltage (V)12
Max Voltage (V)24
Max Power Consumption (mA)500
Fire RatingNFS 61-937
Product Height (mm)228
Product Width (mm)36
Product Depth (mm)27
Armature Plate Dimensions (LxWxH)185 / 38 / 11
Product Weight (kg)0,928
