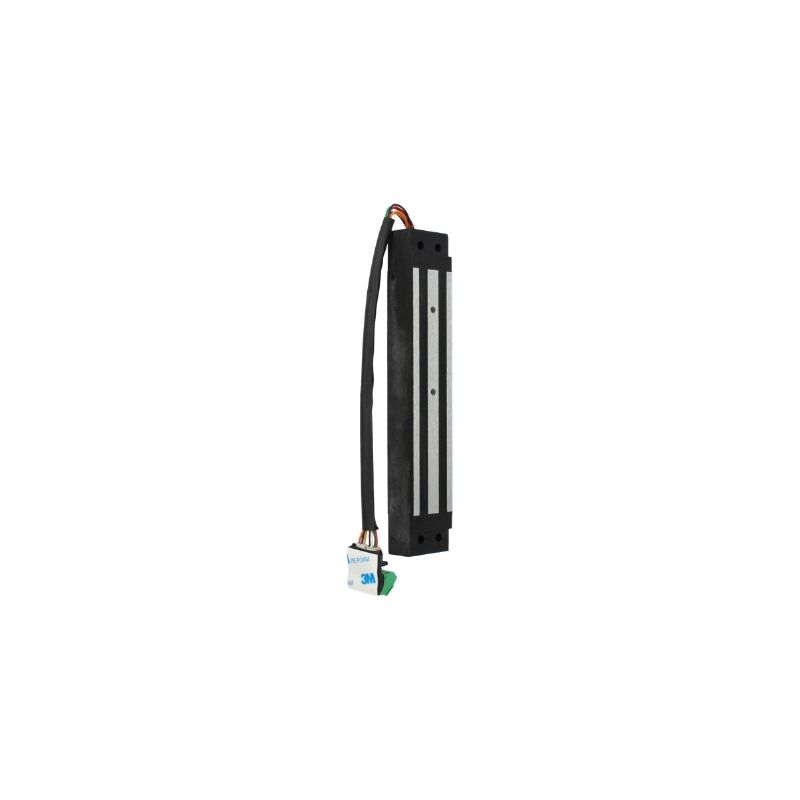

V3E35R
300kg mortice mount electro-magnetic lock for AH3 architectural housings
F0525000012
The V3E35R is a transom maglock designed to be mortice mount.
This maglock is used for the AH3 architectural housings and is included when ordering them as part of a kit.
IP RatingIP54
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)300kg
MountingMortice (for use with AH3 transom housings)
Min Temperature (°C)-40�C
Max Temperature (°C)+70�C
Voltage AC/DCDC
Min. Voltage (V)12 Vdc
Max Voltage (V)24 Vdc
Max Power Consumption (mA)285mA @ 12Vdc / 145mA @ 24Vdc
Surface MaterialSteel
Product Height (mm)205 mm
Product Width (mm)35.5 mm
Product Depth (mm)24.5 mm
Armature Plate Dimensions (LxWxH)185 x 38 x 11 mm
Product Weight (kg)1,850 kg
