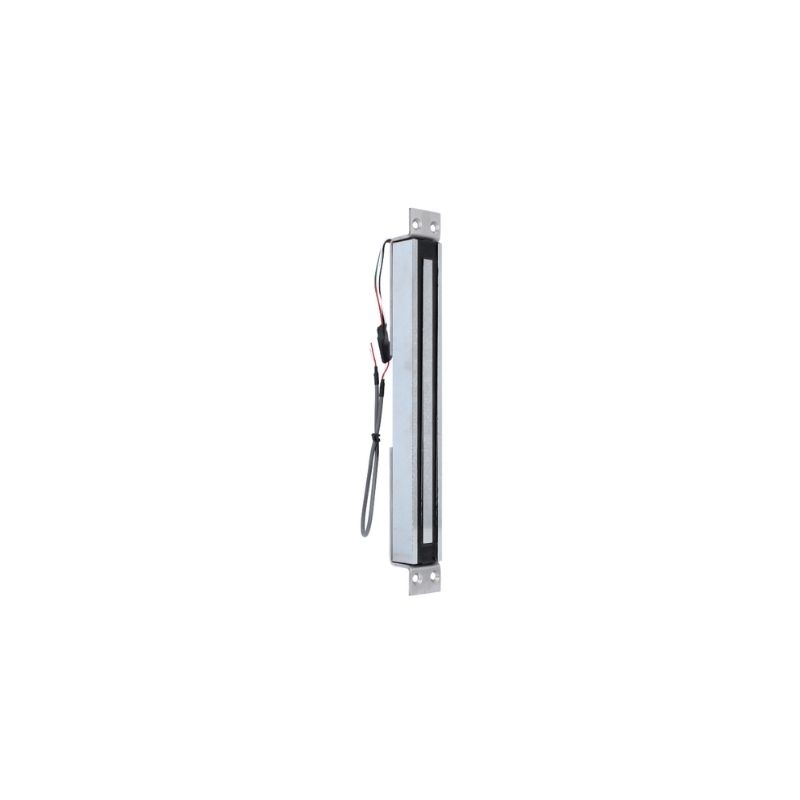

V3E32
Slim 300kg maglock recessed
F0525000004
The V3ER32 is a 32 mm flush-mounted electromagnet for indoor use, with a holding force of 300 kg and a return contact. Thanks to its multi-fixed properties and narrow profile, it is suitable for a wide range of applications, including installation on sliding doors or transverse installation on swing doors. The magnet can be powered by 12 or 24 V DC as required and is fitted with a door position contact.
- High reliability
- Proven durability
- Low cost
- 10-year warranty
IP RatingIP42
Fail Safe / Fail SecureFail safe
Holding Force (kg)300kg
MountingMortice
Min Temperature (°C)-20�C
Max Temperature (°C)60�C
Voltage AC/DCDC
Min. Voltage (V)12Vdc
Max Voltage (V)24Vdc
Max Power Consumption (mA)550mA
Surface MaterialSteel
Product Height (mm)300
Product Width (mm)32
Product Depth (mm)28
Armature Plate Dimensions (LxWxH)250 / 33 / 11
Product Weight (kg)2,3
