V1ER

Slim maglock 180kg surface mounted
F0525000005

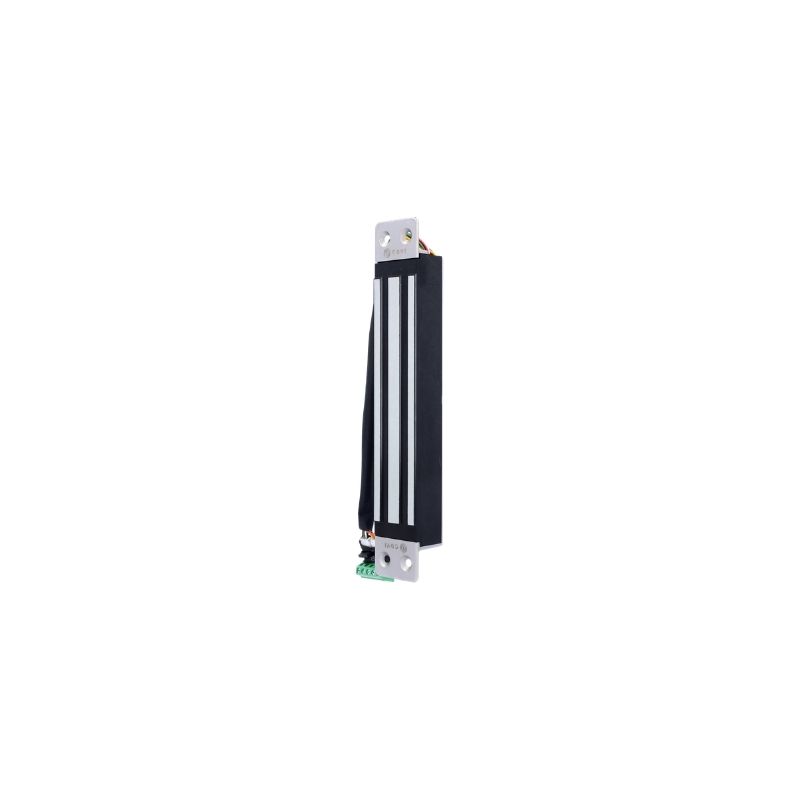

The V1ER is a surface-mounted maglock with a holding force of 180 kg. It is part of a wide range of electromagnetic locking solutions from CDVI. Thanks to its exceptional properties, quality and performance, this product is guaranteed to improve your installation. Each maglock is professionally packaged for easy identification. Each package includes safety cables to ensure that the magnet cannot fall out, ensuring safe installation without risk of injury. - High reliability - Proven durability - Low cost - 10-year warranty
IP RatingIP42
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)180kg
MountingMortice
Min Temperature (°C)-40�C
Max Temperature (°C)60�C
Voltage AC/DCDC
Min. Voltage (V)12Vdc
Max Voltage (V)24Vdc
Max Power Consumption (mA)550mA
Product Height (mm)221
Product Width (mm)34
Product Depth (mm)21
Armature Plate Dimensions (LxWxH)130 x 32 x 9
Product Weight (kg)0.586
×
