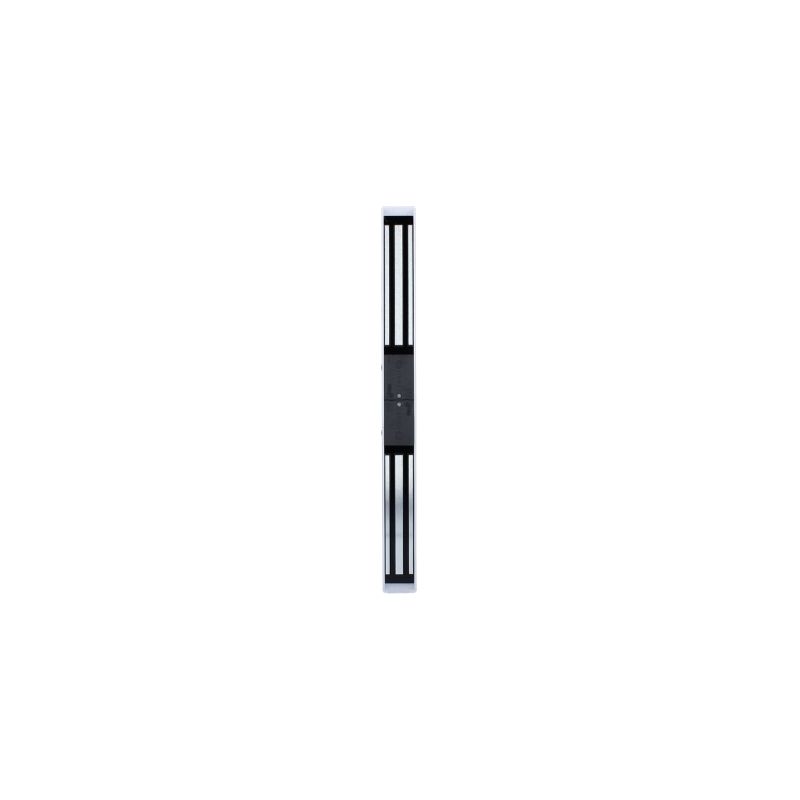

SD300M
Double 300kg magnetic lock, monitored
F0526000010
The SD300M is a monitored surface double maglock with a holding force of up to 300kg on each side. By including two magnets, not only is the holding force doubled for a high-security solution, but the risk of door flexing is also significantly reduced, as the holding force is spread over a greater area. The SD300M is supplied with security catch ropes, which prevent the magnets from falling and ensure they can be mounted safely.
IP RatingIP42
Number of Relays2 - lock status monitoring
Fail Safe / Fail SecureFail safe
Holding Force (kg)2 x 300kg
MountingSurface
Min Temperature (°C)-20�C
Max Temperature (°C)+60�C
Voltage AC/DCDC
Min. Voltage (V)12 Vdc
Max Voltage (V)24 Vdc
Max Power Consumption (mA)590mA @ 12Vdc / 285mA @ 24Vdc
Surface MaterialAluminium
ColourSilver
Product Height (mm)504 mm
Product Width (mm)45 mm
Product Depth (mm)26 mm
Armature Plate Dimensions (LxWxH)185 x 38 x 11 mm
Product Weight (kg)3,700 kg
