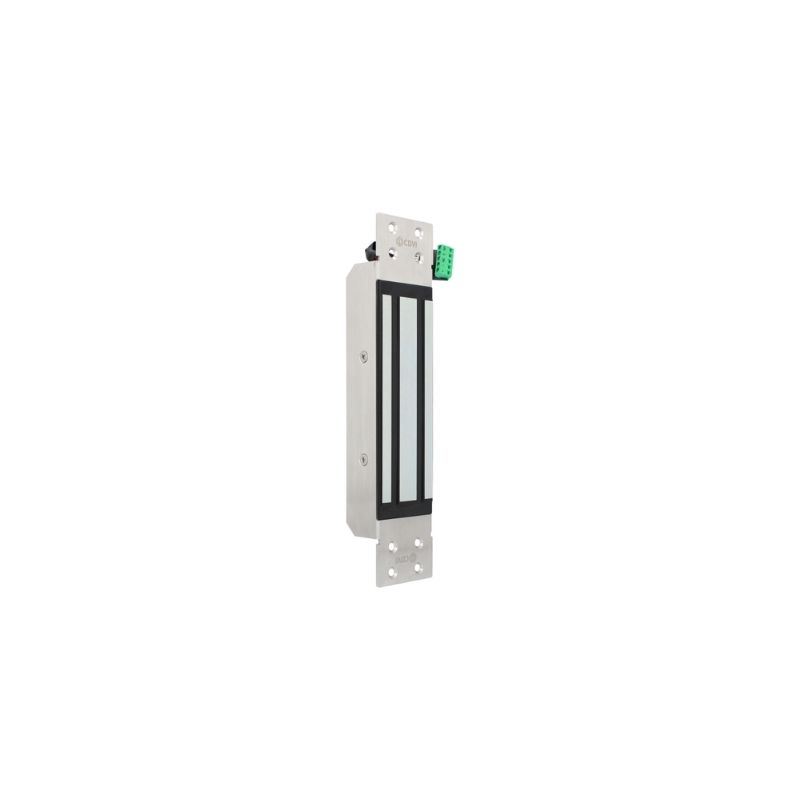

I500ER
500kg external mortice monitored magnetic lock
F0525000028
The I500ER is a monitored mortice maglock with a holding force of up to 500kg. Cased in high grade stainless steel, with a unique cover plate, this magnet is supplied with a full fixing kit.
IP RatingIP66
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)500kg
MountingMortice
Min Temperature (°C)-40�C
Max Temperature (°C)+70�C
Voltage AC/DCDC
Min. Voltage (V)12 Vdc
Max Voltage (V)24 Vdc
Max Power Consumption (mA)270mA @ 12Vdc / 135mA @ 24Vdc
Surface MaterialStainless steel
Product Height (mm)288.5 mm
Product Width (mm)64 mm
Product Depth (mm)37.5 mm
Armature Plate Dimensions (LxWxH)185 x 60 x 12 mm
Product Weight (kg)3,850 kg
