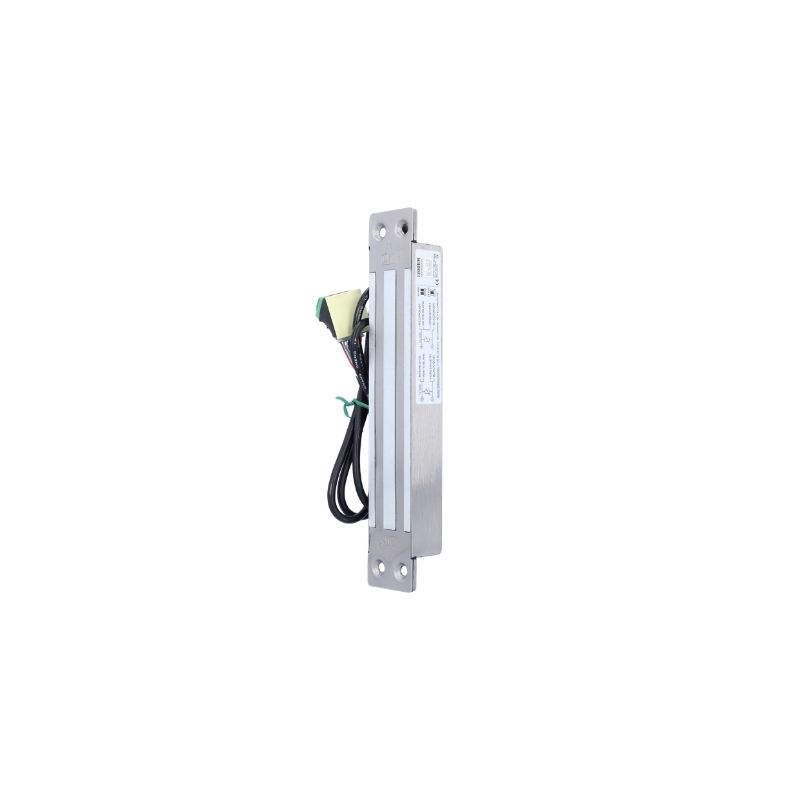

I300ER
300kg external mortice monitored magnetic lock
F0515000001
The I300ER is a monitored mortice maglock with a holding force of up to 300kg. Cased in high grade stainless steel, with a unique cover plate, this magnet is supplied with a full fixing kit.
IP RatingIP68
Number of Relays1
Fail Safe / Fail SecureFail safe
Holding Force (kg)300kg
MountingMortice
Min Temperature (°C)-40�C
Max Temperature (°C)+60�C
Voltage AC/DCDC
Min. Voltage (V)12 Vdc
Max Voltage (V)24 Vdc
Max Power Consumption (mA)450mA
Surface MaterialStainless steel
Product Height (mm)228 mm
Product Width (mm)38 mm
Product Depth (mm)27 mm
Armature Plate Dimensions (LxWxH)185 x 38 x 11 mm
Product Weight (kg)1,245 kg
