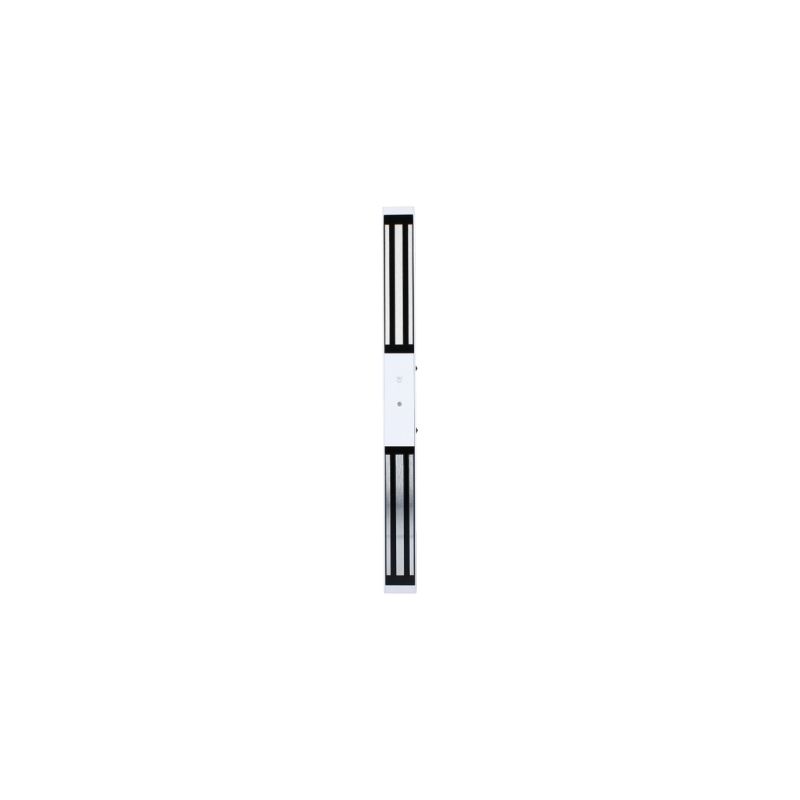

C3S12
Entry level double surface 300kg�magnetic lock,�monitored
E0605000003
High performance magnetic locking at a cost-effective price. The C3S12 is a double surface maglock which provides up to 600kg of holding force, spread across two 300kg magnets. The lock comes with armature plates, fixing kit, and full fitting instructions. Fully compatible with CDVI brackets, housings, and accessories, the C3S12 is a flexible and robust locking solution for a wide range of projects. It also features two red and green LEDs for door status indication.
IP RatingIP42
Fail Safe / Fail SecureFail safe
Holding Force (kg)600kg spread over 2 x 300kg magnets
MountingSurface
Min Temperature (°C)-20�C
Max Temperature (°C)60�C
Voltage AC/DCDC
Min. Voltage (V)12Vdc
Max Voltage (V)24Vdc
Max Power Consumption (mA)960mA @12Vdc / 480mA @24Vdc
Surface MaterialAluminium and steel
Product Height (mm)500
Product Width (mm)43
Product Depth (mm)26
Armature Plate Dimensions (LxWxH)185 / 38 / 11mm
Product Weight (kg)3.55kg
