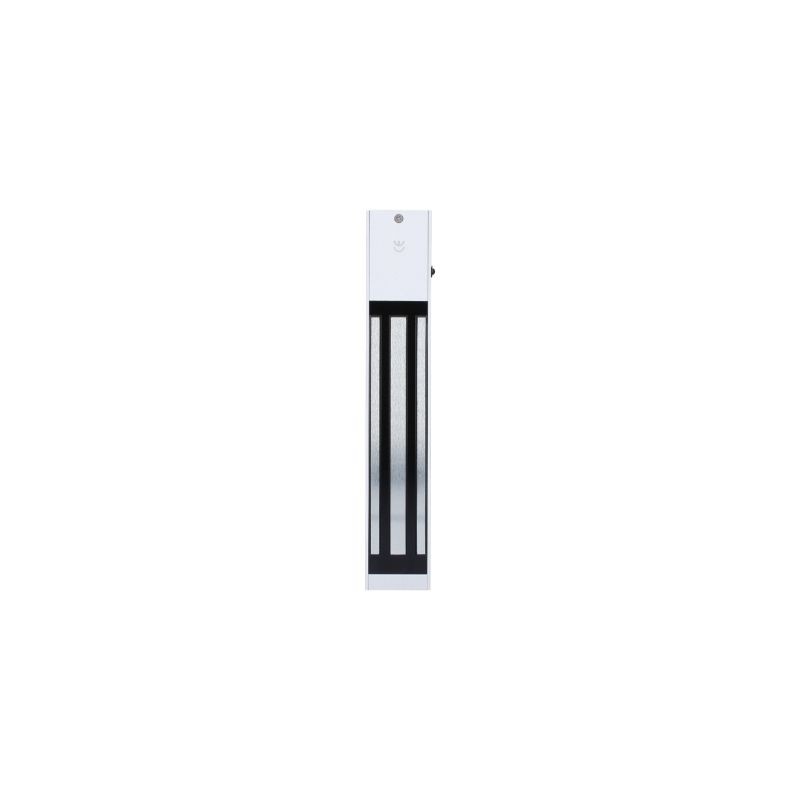

C3S11
Entry level surface 300kg�magnetic lock,�monitored
E0605000002
High performance magnetic locking at a cost-effective price. The C3S11 is a surface maglock which provides up to 300kg of holding force. The magnet comes with its armature plate, fixing kit, and full fitting instructions. Fully compatible with CDVI brackets, housings, and accessories, the C3S11 is a flexible and robust locking solution for a wide range of projects. It also features a red and green LED for door status indication.
IP RatingIP42
Number of Relays1 - lock status monitoring
Fail Safe / Fail SecureFail safe
Holding Force (kg)300kg
MountingSurface
Min Temperature (°C)-20�C
Max Temperature (°C)60�C
Voltage AC/DCDC
Min. Voltage (V)12Vdc
Max Voltage (V)24Vdc
Max Power Consumption (mA)295mA @ 12V / 145mA @ 24V
Fire RatingEN1634-1 & EN1634-2 (30 minutes)
Surface MaterialAluminium and steel
ColourSilver
Product Height (mm)250
Product Width (mm)43
Product Depth (mm)27
Armature Plate Dimensions (LxWxH)185 x 38 x 11 mm
Product Weight (kg)1.8
