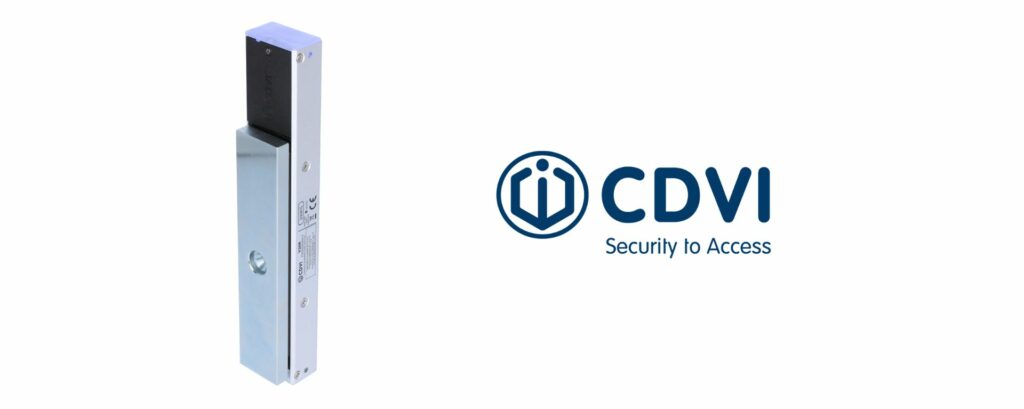

V3SR

V3SR
F0526000002
Providing high quality electro-magnetic locking, the V3SR uses patented technology to keep people and assets secure. With 300kg of holding force, live status monitoring, and LED indication, this lock is ideal for high security installations. Every V3SR is supplied with security catch-ropes, to prevent the magnet from falling out of position and reducing the risk of injury during installation. The V3SR is now a more sustainable magnet. This model consumes just 290mA with a 12Vdc power supply – a 42% reduction in energy usage compared to the previous model.
IP RatingIP42
IK RatingIK10
Number of Relays1
Fail Safe/Fail SecureFail Safe
Holding Force300kg
MountingSurface
Min Temperature-20°C
Max Temperature+60°C
Voltage12-24V DC
Consumption290mA
Surface MaterialAluminium and steel
Height254 mm
Width45 mm
Depth28 mm
Armature Plate Dimensions185 x 38 x 11 mm
Armature Plate Weight0.59 kg
Product Weight1.088 kg
×
