CUBEKIT

CUBEKIT
F1002000142

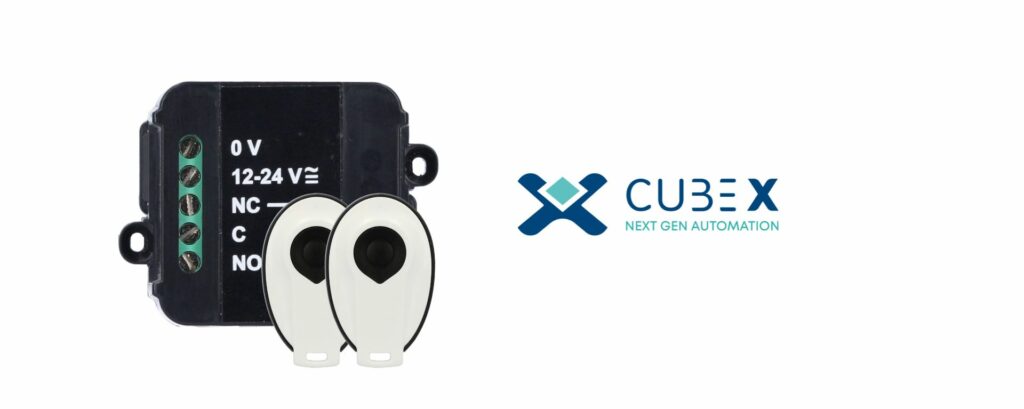

The CUBEKIT is a wireless radio kit that is part of the CUBE X family of radio products. The CUBEKIT includes one 1-relay receiver and two handheld transmitters. This radio solution is a cost-effective way for modernising and automating homes and businesses when automating doors, gates, elevators, lighting, and more. The receiver (CUBEPOWER) is programmed and controlled remotely via the InstallerCUBE app available on iOS and Android. Another app is also available for end users specifically, allowing them direct access (UserCUBE). The CUBE X system also features relay triggering possibilities through NFC tags and mobile credentials for even faster access. Installers who register on the InstallerCUBE app for the first time receive three mobile credentials for free!
TechnologyRadio frequency & Bluetooth®
Channels1 per transmitter
Frequency433.92 MHz
ModulationAM/ASK
EncodingKeeLoq® Hopping Code
Range in Open Field (m)200m
MemoryUp to 250 transmitters and 100 smartphones
Min Temperature-20°C
Max Temperature+65°C
Voltage12-24V AC/DC
Consumption120mA @ 12V AC (500mA at power up)
Surface MaterialABS
×
